Asset GPS Tracker

RM 400.00

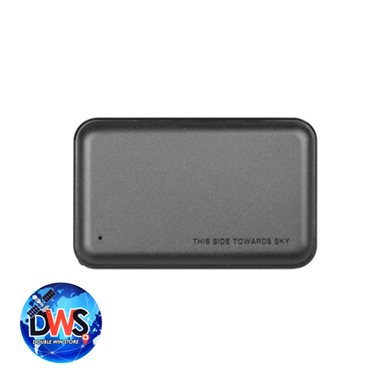

Asset GPS Tracker with Long Standby Time

This GPS Tracker is a compact, waterproof GPS device designed for fixed asset tracking applications. Mainly used for leasing, credit vehicles, valuable storage and transportation, heavy machinery and equipment rentals, cattle grazing management, automobile, motorcycle electric vehicles and specific goods monitoring.


Feature


  • GPS+LBS positioningAllow the location to be pinpointed in real time or periodically
  • Tamper alert Be notified of any unauthorized displacement from original installation
  • 3 years standby timeHigh capacity lithium battery allowing sufficient power supply
  • Multiple alerts Receive low battery and shutdown notices
  • IP66 dust and waterproofWater-resisitant to ensure stable operation in tough environment
  • Strong magnetic mounting Strong magnetic cover allowing for flexible installation on vehicles or assets
  • Tracked by: SMS, APP, Web Reports location in real time through different interfaces


Spec


GSM Specification
GSM frequency850/900/1800/1900 MHz
GPRSClass 12, TCP/IP
Memory32+32Mb
Phase errorRMSPE<5,PPE<20
Max outputGSM850/GSM900:33±3dBm
GSM1800/GSM1900:30±3Bm
Max frequency error±0.1ppm


GPS Specification
GPS chipsetMTK high sensitivity chip
FrequencyL1,1575.42MHz C/A code
GPS channel66
Location accuracy<10 meters
Tracking sensitivity-165dBm
Acquisition sensitivity-148dBm
TTFF (open sky)Avg. hot start ≤1sec
Avg. cold start ≤32sec

Function & Package
Dust-waterproof levelIP66
Button1x Remove alert
Working voltage/current2VDC/50mA
Operating temperature-20℃~ 70℃
Battery4500mAh/3.7V
Standby time3 years(1 position per day)
Working time80 hours (GPS working mode)
Dimension79.6(L)*50.3(W)*30.7(H)mm
Weight110g
